Model Number : | LSW-30KW |
Price : | Negotiable |
Delivery Time : | 7-10 working days after receiving advanced payments |
Brand Name : | JIN GE CHAO TONG |
Certification : | CE |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
High Frequency Induction Heating Furnace
Characteristics:
1. Siemens IGBT inversion technologies are used, that is, “Unified
regulation and control of sequential resonance technologies”, which
is characterized by simple and reliable.
2. The power of the process of heating and thermal insulation, time
is regulated, which helps to improve the quality and
reproducibility of heating, simplifies the work of highly qualified
specialists.
3. Easy to install, connects to single-phase 220 V and three-phase
380 V batteries, for starting water , a few minutes are enough.
4. It takes up a minimum of space, is easy to use, it takes several
minutes to familiarize yourself with safety precautions, the output
voltage below 36 V eliminates the risk of electric shock.

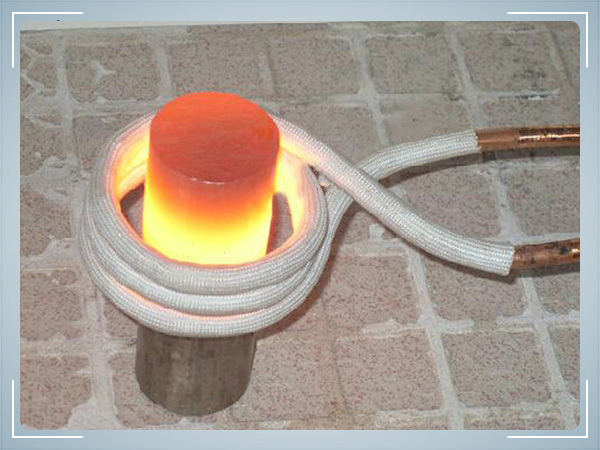

5. The lack of open fire makes it safer. With the help of eddy currents, electromagnetic induction is created, which is necessary for heating any metal.
LSW-30 equipment is widely used for welding diamond dust discs and drilling tools; for welding drills, drills for coal, drills for the anchor rod; for welding a drill bit; for welding of turning, planing and milling cutters and various woodworking cutting tools. Energy-saving and environmental, reliable and stable equipment in operation takes up a small place, it is simple and safe to operate.
Tip: You can call the manager and explain the tasks of induction heating and smelting right now. You can also use the communication system directly on the site. Or you can send us a drawing or sketch of your details, indicating the heating zone, temperature and depth of the hardened layer.
Technical parameters
Model | LSW-30 |
Working voltage | 380V 50HZ |
Max input power | 30KW |
Control switch | 60A |
Input current | 50A |
Output voltage | 550V |
Oscillation frequency | 25-40KHZ |
Duty cycle | 100% |
Cooling water flow | 25L/Min,0.1MPa |
Ground wire | 1mm² (annealed copper wire) |
Weight | 60kg |
Dimension(L*W*H) | 265x600x540mm |
![]() |
